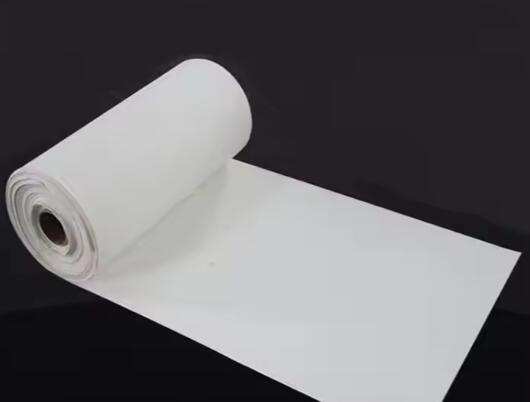

1mm 2mm 5mm Thick Aluminium Silicate Ceramic Fiber Paper 1260C High Temperature Refractory Insulation Materials

Ceramic Fiber Paper(ceramic fiber wool paper gasket) is processed from the high purity fiber, which can be used in the field of high temperature insulation. Because we have adopted the advanced processing work, we cannot only make the fiber interweave shapely, but also can control the thickness and the density rigidly.

We can produce Standard ceramic fiber paper,High pure ceramic fiber paper,High Aluminium ceramic fiber paper,Zirconium ceramic fiber paper,the use of temperature can reach 1350C, and have excellent eco-friendly performance.

Characteristics of ceramic fiber paper:

1:Low thermal capacity
2:Low thermal conductivity
3: Excellent electrical insulation properties
4:Excellent machining performance
5: High strength, tear resistance
6: High flexibility
7:Low slag content
8:Excellent fire proof property

1mm 2mm 5mm Thick Aluminium Silicate Ceramic Fiber Paper 1260C High Temperature Refractory Insulation Materials

Specification

Standard size:

60000x610x1mm / 30000x610x2mm / 20000x610x3mm / 15000x610x4mm / 12000x610x5mm / 10000x610x6mm

Specifications of ceramic fiber paper:

Type Standard ceramic fiber paper High pure ceramic fiber paper High Aluminium ceramic fiber paper Zirconium ceramic fiber paper
Chemical analysis (%) AL2O3 43 47 55 38
SiO2 53 51 44 44
Fe2O3+Ti2O3 ≤1.2 ≤0.3 ≤0.3 ≤0.2
CaO+MgO ≤0.3 ≤0.3 ≤0.3 ≤0.2
NaO+K2O ≤0.5 ≤0.3 ≤0.3 ≤0.2
Crganic Content (%) 5% ≤5% ≤5% ≤5%
Density(kg/m3) 180-220 180-220 180-220 180-220
Work Temperature 1050 1150 1250 1350
Thickness 0.5-12mm
size (mm) 40000x1220x1;40000x610x1; 30000x1220x2; 30000x610x2;20000x1220x3;20000x610x3;15000x610x4; 10000x610x5

1mm 2mm 5mm Thick Aluminium Silicate Ceramic Fiber Paper 1260C High Temperature Refractory Insulation Materials

Application

Application of ceramic fiber paper:

1:Industrial insulation, sealing, anti-corrosion material

2:Insulation material for instruments and heating element

3:Insulation material for automobile and aerospace industry

4:Expansion joints filling material

5:Isolation for construction material, metallurgy and glass industries,

6:Molten metal sealing gasket

7:Fireproof material

8:Substitute for glass fiber and asbestos fiber
